Casting Division
The manufacturing setup of Luthra Industrial Corp. is a fine blend of Advanced Management Techniques, Ultra Modern Machinery and Quality Control procedures. The company undertakes Grey and Nodular Iron casting operations for varied product demands. The avant-garde installed machinery renders the capacity to manufacture components ranging from 100mm to 500mm in size and 2 kg to 80 kg in weight.
| SECTION | SPECIFICATION |
|---|---|
| CAPACITY | - |
| MOULDING LINE | HIGH PRESSURE MOULDING MACHINE MOULDING BOX SIZE - 600 X 600 X 150 PRODUCTION RATE - 80 MOULDS PER HOUR |
| SAND PLANT | CONTINUOUS SAND PLANT FROM FONDARC, FRANCE AUTOMATED SAND COOLING AND CONVEYING SYSTEM FROM KNOCK OUT WITH INLINE MAGNETIC SEPARATOR, SIEVING, COOLER AND STORAGE IN HOPPERS CAPACITY : - 80 TONS PER HOUR |
| CORE MAKING | COLD BOX CORE SHOOTERS CAPACITY - UP TO 10.00 KG CORES SIZE - 400 X 400 X 300 |
| MELTING | MEDIUM FREQUENCY INDUCTION FURNACES FROM INDUCTOTHERM |
| POURING SYSTEM | MONO RAIL SYSTEM |
| FINISHING | CONTINUOUS, CABIN HANGER TYPE SHOT BLASTING MACHINES PEDESTAL AND PNEUMATIC GRINDERS. |

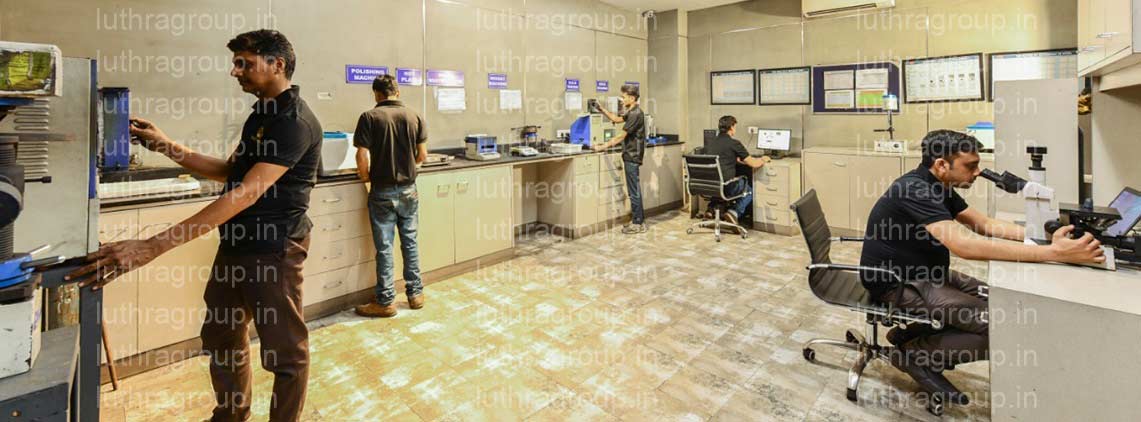

| QUALITY | SPECTRO, IMAGE ANALYZER, UTM , GCS TESTER , MUFFLE FURNACE , DIGITAL MOISTURE METER , SEIVE SHAKER, SAND DRYER , PERMEABILITY TESTER |
| MATERIAL | GREY IRON NODULAR IRON OTHER GRADES CAN ALSO BE PREPARED AS PER CUSTOMER REQUIRMENT. |
| ENVIRONMENTAL SAFETY | LOWER CARBON FOOTPRINT THEREBY ENSURING ENVIRONMENTAL SAFETY. |
| PATTERN SHOP | IN-HOUSE CAPTIVE PATTERN SHOP SUPPORTED BY AN EXISTING MOST ADVANCED MACHINE SHOP. |
